Double Open End Wrenches- (mm)
Product Specification
Product Specification

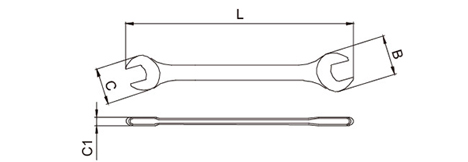

| Item Nr. | C | B | C1 | B1 | |||
|---|---|---|---|---|---|---|---|
| 63010607 | 6 x 7 | 18 | 15.5 | 4.6 | 25 | 123 | 25 |
| 63010608 | 6 x 8 | 18 | 15.5 | 4.6 | 25 | 123 | 25 |
| 63010809 | 8 x 9 | 22.7 | 20.4 | 4.7 | 40 | 140 | 40 |
| 63010810 | 8 x 10 | 22.7 | 20.4 | 4.7 | 40 | 140 | 40 |
| 63011011 | 10 x 11 | 27.1 | 24.9 | 4.8 | 60 | 156 | 60 |
| 63011012 | 10 x 12 | 27.1 | 24.9 | 4.8 | 60 | 156 | 60 |
| 63011113 | 11 x 13 | 31.2 | 29.2 | 5.2 | 75 | 172 | 75 |
| 63011213 | 12 x 13 | 31.3 | 29.2 | 5.2 | 75 | 172 | 75 |
| 63011214 | 12 x 14 | 33.3 | 31.3 | 5.5 | 85 | 180 | 85 |
| 63011314 | 13 x 14 | 33.3 | 31.3 | 5.5 | 85 | 180 | 85 |
| 63011415 | 14 x 15 | 35.3 | 33.3 | 5.9 | 110 | 190 | 110 |
| 63011417 | 14 x 17 | 38.9 | 33.3 | 6.1 | 115 | 195 | 115 |
| 63011617 | 16 x 17 | 38.9 | 37.1 | 6.3 | 130 | 204 | 130 |
| 63011719 | 17 x 19 | 42.8 | 40.9 | 6.7 | 160 | 221 | 160 |
| 63011819 | 18 x 19 | 42.8 | 40.9 | 6.7 | 160 | 221 | 160 |
| 63011921 | 19 x 21 | 48.8 | 44.8 | 7.1 | 200 | 237 | 200 |
| 63011922 | 19 x 22 | 48.8 | 44.8 | 7.1 | 200 | 237 | 200 |
| 63012022 | 20 x 22 | 48.8 | 44.8 | 7.1 | 200 | 237 | 200 |
| 63012123 | 21 x 23 | 50.8 | 46.8 | 7.7 | 250 | 247 | 250 |
| 63012224 | 22 x 24 | 50.8 | 46.8 | 7.7 | 250 | 247 | 250 |
| 63012326 | 23 x 26 | 56.8 | 50.8 | 7.9 | 270 | 255 | 270 |
| 63012426 | 24 x 26 | 56.8 | 50.8 | 7.9 | 270 | 255 | 270 |
| 63012427 | 24 x 27 | 59.1 | 52.8 | 8.1 | 300 | 263 | 300 |
| 63012528 | 25 x 28 | 61.3 | 54.8 | 8.5 | 350 | 279 | 350 |
| 63012730 | 27 x 30 | 62.3 | 56.8 | 8.7 | 380 | 283 | 380 |
| 63012732 | 27 x 32 | 69.8 | 59.1 | 8.9 | 460 | 289 | 460 |
| 63013032 | 30 x 32 | 69.8 | 65.4 | 9 | 460 | 298 | 460 |
| 63013236 | 32 x 36 | 76 | 69.8 | 10.5 | 600 | 350 | 600 |
| 63013436 | 34 x 36 | 76 | 69.8 | 10.5 | 600 | 350 | 600 |
| 63013641 | 36 x 41 | 87 | 76 | 12 | 920 | 380 | 920 |
| 63013842 | 38 x 42 | 87 | 76 | 12 | 920 | 380 | 920 |
| 63014146 | 41 x 46 | 95 | 86 | 15 | 1300 | 415 | 1300 |
| 63014650 | 46 x 50 | 104 | 95 | 16 | 1900 | 465 | 1900 |
