Combination Wrenches- (inch)
Product Specification
Product Specification

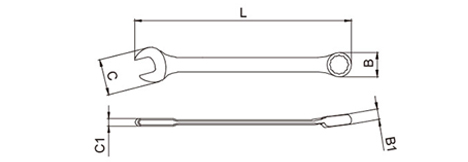

| Item Nr. | C | B | C1 | B1 | |||
|---|---|---|---|---|---|---|---|
| 62010008 | 1/4 | 15.5 | 10.1 | 4.2 | 4.7 | 105 | 17 |
| 62010010 | 5/16 | 19.2 | 12.8 | 4.6 | 5.5 | 125 | 26 |
| 62010012 | 3/8 | 23.2 | 15.6 | 5 | 6.5 | 145 | 36 |
| 62010014 | 7/16 | 25.3 | 16.9 | 5.4 | 6.9 | 155 | 44 |
| 62010016 | 1/2 | 29.4 | 19.7 | 5.9 | 7.8 | 175 | 63 |
| 62010018 | 9/16 | 31.5 | 21.2 | 6.2 | 8.3 | 185 | 78 |
| 62010019 | 19/32 | 33.2 | 22.5 | 6.4 | 8.6 | 195 | 100 |
| 62010020 | 5/8 | 34.7 | 24 | 6.7 | 8.9 | 205 | 110 |
| 62010022 | 11/16 | 36.5 | 25.3 | 6.9 | 9.3 | 215 | 132 |
| 62010024 | 3/4 | 39.8 | 28.1 | 7.6 | 10.5 | 235 | 154 |
| 62010025 | 25/32 | 43.1 | 29.7 | 7.7 | 10.9 | 245 | 188 |
| 62010026 | 13/16 | 44.8 | 31.3 | 8 | 11.3 | 255 | 200 |
| 62010028 | 7/8 | 46.9 | 32.6 | 8.2 | 11.5 | 265 | 220 |
| 62010030 | 15/16 | 50.4 | 35.5 | 8.7 | 12.1 | 285 | 280 |
| 62010032 | 1 | 52 | 36.9 | 8.9 | 12.5 | 295 | 340 |
| 62010034 | 1-1/16 | 55.7 | 39.6 | 9.4 | 13.1 | 315 | 390 |
| 62010036 | 1-1/8 | 59.7 | 42.3 | 9.9 | 13.5 | 335 | 440 |
| 62010038 | 1-3/16 | 61.8 | 43.7 | 10.1 | 13.7 | 345 | 500 |
| 62010040 | 1-1/4 | 65.8 | 46.4 | 10.4 | 14.3 | 365 | 560 |
| 62010042 | 1-5/16 | 69.2 | 48.8 | 10.7 | 15 | 380 | 630 |
| 62010044 | 1-3/8 | 74 | 53 | 13.5 | 19.4 | 410 | 800 |
| 62010046 | 1-7/16 | 74 | 53 | 13.5 | 19.4 | 410 | 800 |
| 62010048 | 1-1/2 | 77 | 56 | 15 | 20.4 | 430 | 1000 |
| 62010052 | 1-5/8 | 84 | 61 | 16 | 21.6 | 460 | 1160 |
| 62010054 | 1-11/16 | 84 | 61 | 16 | 21.6 | 460 | 1160 |
| 62010056 | 1-3/4 | 82 | 66 | 17 | 23 | 500 | 1700 |
| 62010058 | 1-13/16 | 82 | 66 | 17 | 23 | 500 | 1700 |
| 62010060 | 1-7/8 | 102 | 73 | 18 | 24.6 | 540 | 2000 |
| 62010064 | 2 | 102 | 73 | 18 | 24.6 | 540 | 2000 |
