Extra Long Double Ring Wrenches (Off-Set Type)-(mm)
Product Specification
Product Specification

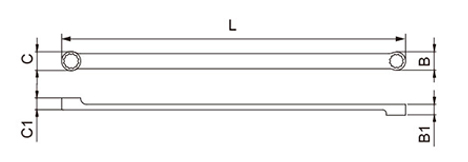

| Item Nr. | C | B | C1 | B1 | |||
|---|---|---|---|---|---|---|---|
| 63310607 | 6 x 7 | 14 | 12 | 8.1 | 7.1 | 200 | 65 |
| 63310608 | 6 x 8 | 14 | 12 | 8.1 | 7.1 | 200 | 65 |
| 63310810 | 8 x 10 | 16 | 13.5 | 8.4 | 7.4 | 240 | 78 |
| 63311011 | 10 x 11 | 19.1 | 16.2 | 9.7 | 8.7 | 288 | 124 |
| 63311012 | 10 x 12 | 19.1 | 16.2 | 9.7 | 8.7 | 288 | 124 |
| 63311113 | 11 x 13 | 22.4 | 19.6 | 12 | 11 | 330 | 200 |
| 63311214 | 12 x 14 | 22.4 | 19.6 | 12 | 11 | 330 | 200 |
| 63311315 | 13 x 15 | 25.7 | 21.5 | 14.9 | 12.9 | 364 | 308 |
| 63311417 | 14 x 17 | 25.7 | 21.5 | 14.9 | 12.9 | 364 | 308 |
| 63311618 | 16 x 18 | 29.3 | 26.6 | 16 | 15 | 405 | 432 |
| 63311719 | 17 x 19 | 29.3 | 26.6 | 16 | 15 | 405 | 432 |
| 63312022 | 20 x 22 | 34 | 31 | 18.8 | 17.5 | 425 | 520 |
| 63312123 | 21 x 23 | 34.7 | 32.7 | 18.5 | 17.2 | 435 | 573 |
| 63312224 | 22 x 24 | 34.7 | 32.7 | 18.5 | 17.2 | 435 | 573 |
