Double Ring Wrenches-75 Degree- (inch)
Product Specification
Product Specification

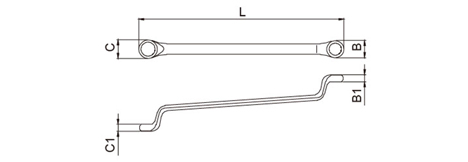

| Item Nr. | C | B | C1 | B1 | |||
|---|---|---|---|---|---|---|---|
| 63120608 | 1/4 x 5/16 | 12.2 | 10.7 | 6.5 | 6 | 168 | 45 |
| 63120810 | 5/16 x 3/8 | 15.1 | 13.6 | 7.5 | 7 | 183 | 60 |
| 63121011 | 3/8 x 7/16 | 18 | 16.6 | 9 | 8 | 198 | 90 |
| 63121113 | 7/16 x 1/2 | 20.9 | 19.5 | 9.5 | 9 | 217 | 118 |
| 63121314 | 1/2 x 9/16 | 20.9 | 19.5 | 9.5 | 9 | 217 | 118 |
| 63121416 | 9/16 x 5/8 | 23.7 | 22.4 | 10.5 | 10 | 239 | 160 |
| 63121517 | 19/32 x 11/16 | 26.7 | 25.3 | 11.3 | 11 | 260 | 185 |
| 63121617 | 5/8 x 11/16 | 26.7 | 25.3 | 11.3 | 11 | 260 | 185 |
| 63121719 | 11/16 x 3/4 | 29.7 | 28.2 | 11.9 | 11.6 | 292 | 210 |
| 63122122 | 13/16 x 7/8 | 34 | 31.1 | 12.9 | 12.2 | 318 | 320 |
| 63122224 | 7/8 x 15/16 | 36.9 | 34 | 13.2 | 12.5 | 330 | 390 |
| 63122426 | 15/16 x 1 | 41.4 | 36.9 | 14.4 | 13.5 | 345 | 500 |
| 63122629 | 1 x 1-1/8 | 43.8 | 40.4 | 14.7 | 13.8 | 355 | 520 |
| 63123032 | 1-1/8 x 1-1/4 | 48.5 | 45.5 | 16 | 15.4 | 370 | 670 |
| 63123538 | 1-3/8 x 1-1/2 | 54.5 | 48.5 | 17.2 | 16 | 451 | 1130 |
| 63123641 | 1-7/16 x 1-5/8 | 62 | 53.5 | 20 | 18 | 451 | 1130 |
| 63124650 | 1-13/16 x 2 | 76 | 70 | 23.5 | 21 | 526 | 1820 |
