Combination Wrenches- (mm)
Product Specification
Product Specification

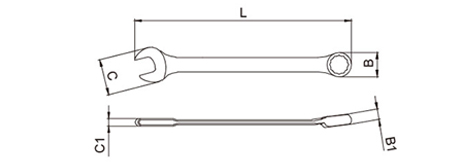

| Item Nr. | C | B | C1 | B1 | |||
|---|---|---|---|---|---|---|---|
| 62019006 | 6 | 15.5 | 10.1 | 4.2 | 4.7 | 105 | 17 |
| 62019007 | 7 | 17 | 11.5 | 4.4 | 5 | 115 | 20 |
| 62019008 | 8 | 19.2 | 12.8 | 4.6 | 5.5 | 125 | 26 |
| 62019009 | 9 | 21.2 | 14.2 | 4.8 | 5.9 | 135 | 34 |
| 62019010 | 10 | 23.2 | 15.6 | 5 | 6.5 | 145 | 36 |
| 62019011 | 11 | 25.3 | 16.9 | 5.4 | 6.9 | 155 | 44 |
| 62019012 | 12 | 27.2 | 18.3 | 5.5 | 7.3 | 165 | 52 |
| 62019013 | 13 | 29.4 | 19.7 | 5.9 | 7.8 | 175 | 63 |
| 62019014 | 14 | 31.5 | 21.2 | 6.2 | 8.3 | 185 | 78 |
| 62019015 | 15 | 33.2 | 22.5 | 6.4 | 8.6 | 195 | 100 |
| 62019016 | 16 | 34.7 | 24 | 6.7 | 8.9 | 205 | 110 |
| 62019017 | 17 | 36.5 | 25.3 | 6.9 | 9.3 | 215 | 132 |
| 62019018 | 18 | 38.7 | 26.8 | 7.2 | 9.9 | 225 | 144 |
| 62019019 | 19 | 39.8 | 28.1 | 7.6 | 10.5 | 235 | 158 |
| 62019020 | 20 | 43.1 | 29.7 | 7.7 | 10.9 | 245 | 188 |
| 62019021 | 21 | 44.8 | 31.3 | 8 | 11.3 | 255 | 200 |
| 62019022 | 22 | 46.9 | 32.6 | 8.2 | 11.5 | 265 | 220 |
| 62019023 | 23 | 48.3 | 34.2 | 8.4 | 11.8 | 275 | 260 |
| 62019024 | 24 | 50.4 | 35.5 | 8.7 | 12.1 | 285 | 280 |
| 62019025 | 25 | 52 | 36.9 | 8.9 | 12.5 | 295 | 340 |
| 62019026 | 26 | 53.6 | 38.2 | 9.2 | 12.8 | 305 | 370 |
| 62019027 | 27 | 55.7 | 39.6 | 9.4 | 13.1 | 315 | 390 |
| 62019028 | 28 | 57.6 | 40.9 | 9.7 | 13.3 | 325 | 430 |
| 62019029 | 29 | 59.7 | 42.3 | 9.9 | 13.5 | 335 | 440 |
| 62019030 | 30 | 61.8 | 43.7 | 10.1 | 13.7 | 345 | 500 |
| 62019032 | 32 | 65.8 | 46.4 | 10.4 | 14.3 | 365 | 560 |
| 62019033 | 33 | 69.2 | 48.8 | 10.7 | 15 | 380 | 630 |
| 62019034 | 34 | 69.2 | 48.8 | 10.7 | 15 | 380 | 630 |
| 62019035 | 35 | 74 | 53 | 13.5 | 19.4 | 410 | 800 |
| 62019036 | 36 | 74 | 53 | 13.5 | 19.4 | 410 | 800 |
| 62019038 | 38 | 77 | 56 | 15 | 20.4 | 430 | 1000 |
| 62019041 | 41 | 84 | 61 | 16 | 21.6 | 460 | 1160 |
| 62019043 | 43 | 84 | 61 | 16 | 21.6 | 460 | 1160 |
| 62019045 | 45 | 92 | 66 | 17 | 23 | 500 | 1700 |
| 62019046 | 46 | 92 | 66 | 17 | 23 | 500 | 1700 |
| 62019047 | 47 | 92 | 66 | 17 | 23 | 500 | 1700 |
| 62019048 | 48 | 102 | 73 | 18 | 24.6 | 540 | 2000 |
| 62019049 | 49 | 102 | 73 | 18 | 24.6 | 540 | 2000 |
| 62019050 | 50 | 102 | 73 | 18 | 24.6 | 540 | 2000 |
| 62019055 | 55 | 118 | 85 | 18 | 28 | 560 | 2800 |
| 62019058 | 58 | 125 | 94 | 20 | 31 | 600 | 3900 |
| 62019060 | 60 | 125 | 94 | 20 | 31 | 600 | 3900 |
| 62019065 | 65 | 144 | 107 | 22 | 31 | 680 | 5800 |
| 62019070 | 70 | 144 | 107 | 22 | 31 | 680 | 5800 |
| 62019075 | 75 | 149 | 112 | 25.5 | 36 | 730 | 6650 |
| 62019080 | 80 | 149 | 112 | 25.5 | 36 | 730 | 6650 |
| 62019085 | 85 | 179 | 131 | 30 | 38 | 790 | 10000 |
| 62019090 | 80 | 179 | 131 | 30 | 38 | 790 | 10000 |
| 62019095 | 95 | 179 | 131 | 30 | 38 | 790 | 10000 |
| 62019100 | 100 | 187 | 145 | 32 | 43 | 860 | 11500 |
| 62019105 | 105 | 187 | 145 | 32 | 43 | 860 | 11500 |
