1/4"DR. Spline Sockets- (inch)
Product Specification
Product Description
Product Specification

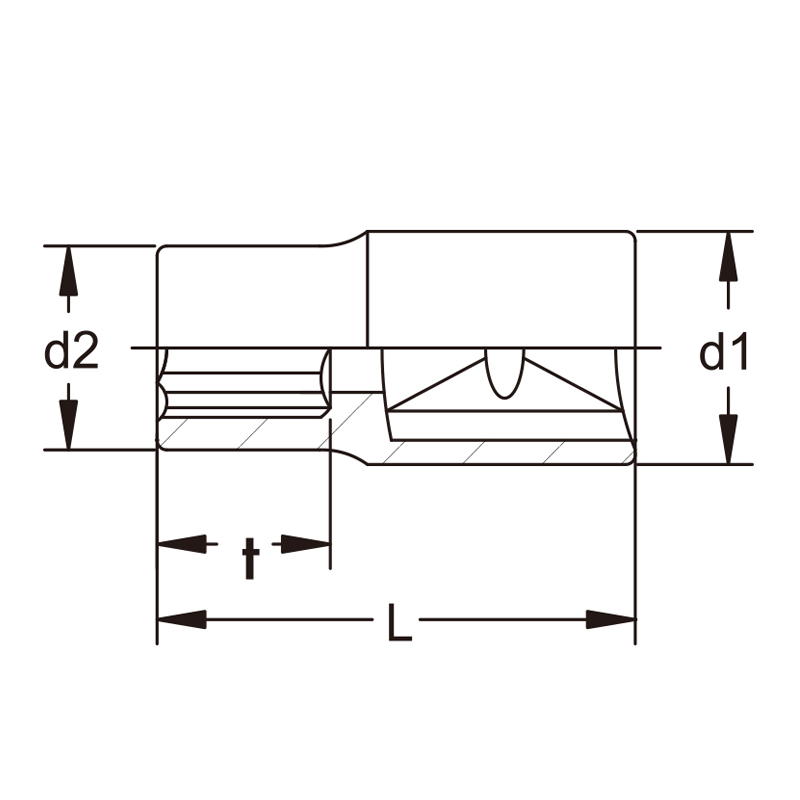

| Item Nr. | ||||||
|---|---|---|---|---|---|---|
| 182203 | 5/32 | 7.0 | 11.9 | 2 | 25 | 11 |
| 182204 | 3/16 | 8.2 | 11.9 | 2.5 | 25 | 11 |
| 182205 | 7/32 | 8.8 | 11.9 | 3 | 25 | 12 |
| 182206 | 1/4 | 9.6 | 11.9 | 3 | 25 | 12 |
| 182207 | 9/32 | 11.0 | 12.9 | 4 | 25 | 13 |
| 182208 | 5/16 | 12.9 | 12.9 | 5 | 25 | 13 |
| 182209 | 11/32 | 13.9 | 13.9 | 5 | 25 | 20 |
| 182210 | 3/8 | 15.9 | 15.9 | 6 | 25 | 18 |
| 182211 | 7/16 | 16.9 | 16.9 | 7 | 25 | 25 |
| 182213 | 1/2 | 19.9 | 19.9 | 8 | 25 | 32 |
Product Description
- Square drive as per DIN 3120, ISO 1174
- Chrome Vanadium
- Country of Origin：Taiwan
