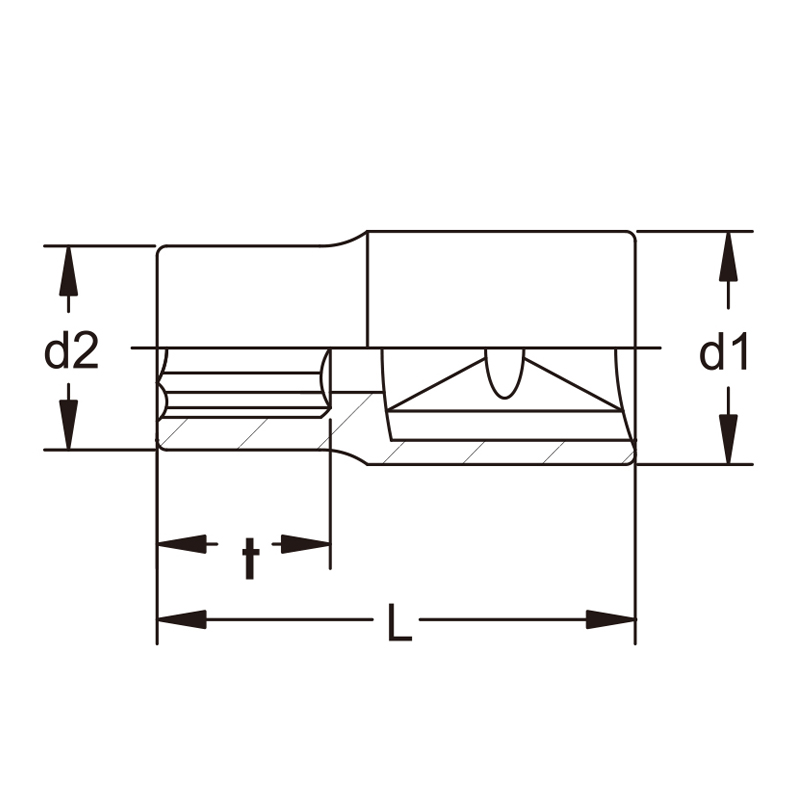

1/2"DR. Spline Sockets- (mm)
Product Specification
Product Description
Product Specification
| Item Nr. | ||||||
|---|---|---|---|---|---|---|
| 554208 | 8 | 21.9 | 14 | 5 | 38 | 50 |
| 554209 | 9 | 21.9 | 15 | 5 | 38 | 50 |
| 554210 | 10 | 21.9 | 16.2 | 6 | 38 | 52 |
| 554211 | 11 | 21.9 | 17.5 | 7 | 38 | 53 |
| 554212 | 12 | 21.9 | 18.7 | 7 | 38 | 53 |
| 554213 | 13 | 21.9 | 20 | 8 | 38 | 54 |
| 554214 | 14 | 21.9 | 20.5 | 8 | 38 | 56 |
| 554215 | 15 | 20 | 21.9 | 10 | 38 | 56 |
| 554216 | 16 | 22 | 23.9 | 10 | 38 | 64 |
| 554217 | 17 | 22 | 23.9 | 10 | 38 | 71 |
| 554218 | 18 | 24 | 25.9 | 12 | 38 | 88 |
| 554219 | 19 | 24 | 25.9 | 12 | 38 | 76 |
| 554220 | 20 | 26 | 27.9 | 12 | 38 | 89 |
| 554221 | 21 | 28 | 29.9 | 12 | 38 | 85 |
| 554222 | 22 | 28 | 29.9 | 12 | 38 | 109 |
| 554223 | 23 | 30 | 31.9 | 12 | 38 | 128 |
| 554224 | 24 | 30 | 31.9 | 16 | 38 | 124 |
| 554227 | 27 | 34 | 35.9 | 18 | 42 | 171 |
| 554230 | 30 | 38 | 39.9 | 20 | 44 | 228 |
| 554232 | 32 | 40 | 41.9 | 20 | 44 | 228 |
Product Description
- Square drive designed according to DIN 3120, ISO 1174
- Chrome Vanadium
- Country of Origin：Taiwan
